SB520A - Schottky Barrier Rectifier

SB520A Description

www.DataSheet.co.kr New Product SB520A thru SB560A Vishay General Semiconductor Schottky Barrier Rectifier .

SB520A Features

* Guardring for overvoltage protection
* Very small conduction losses
* Extremely fast switching
* Low forward voltage drop
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106 DO-201AD
* Compliant to RoHS directive 2002

SB520A Applications

* PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. 5.0 A 20 V to 60 V 150 A 0.50 V, 0.70 V 150 °C For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications. MECHANICAL DATA Case: DO-201AD Molding compound meets UL 94 V-0 flammability

📥 Download Datasheet

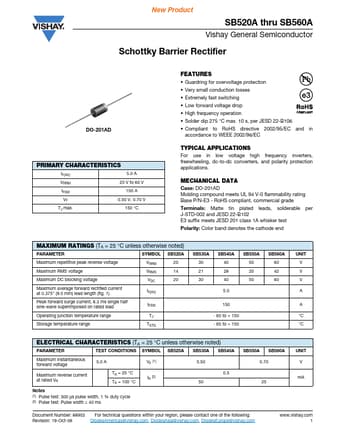

Preview of SB520A PDF
