SDAH2500 - (SDAH2500 - SDAH15000) STANDARD RECOVERY HIGH CURRENT - HIGH VOLTAGE RECTIFIER

Product Overview

SSDI

Part number	SDAH2500
Manufacturer	SSDI
File Size	142.91 KB
Description	(SDAH2500 - SDAH15000) STANDARD RECOVERY HIGH CURRENT - HIGH VOLTAGE RECTIFIER
Datasheet	SDAH2500 Datasheet
Note	This datasheet PDF includes multiple part numbers: SDAH2500, SDAH10000. Please refer to the document for exact specifications by model.

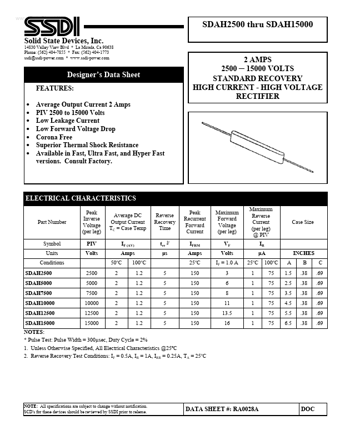

Additional preview pages of the SDAH2500 datasheet.

Average Output Current 2 Amps PIV 2500 to 15000 Volts Low Leakage Current Low Forward Voltage Drop Corona Free Superior Thermal Shock Resistance Available in Fast, Ultra Fast, and Hyper Fast versions. Consult Factory. 2 AMPS 2500 ─ 15000 VOLTS.
