2ST1480

(2ST1480 / 2ST2480) Complementary power transistors

2ST1480 Features

* Very low collector-emitter saturation voltage High current gain characteristic Fast switching speed Fully insulated package 2 1 Applications

* 3 Voltage regulation Computer and peripheral equipment Audio amplifier Relay driver Figure 1. Internal sche

2ST1480 General Description

The devices are manufactured using new “PBHCD” (power bipolar high current density) technology. The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage. www.DataSheet4U.com Table 1. Device summary Marking 2ST1480 SOT-32FP 2ST2480 2ST2480 Bag Pack.

2ST1480 Datasheet (188.45 KB)

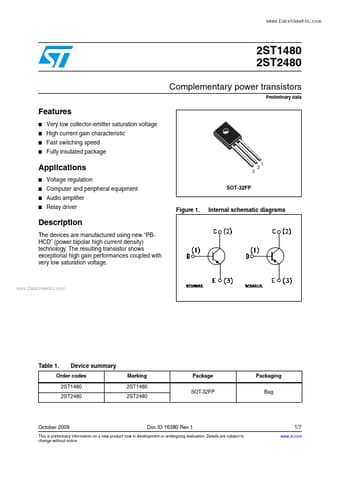

Preview of 2ST1480 PDF

Datasheet Details

Part number:

2ST1480

Manufacturer:

STMicroelectronics ↗

File Size:

188.45 KB

Description:

(2st1480 / 2st2480) complementary power transistors.
