2ST31A

Low voltage NPN power transistor

2ST31A Features

* High switching speed

* Good performances in terms of hFE linearity Application

* Linear and switching industrial applications Description The device is manufactured in planar technology with “base island” layout. The resulting transistor shows high gain performance coupled with low sat

2ST31A General Description

The device is manufactured in planar technology with “base island” layout. The resulting transistor shows high gain performance coupled with low saturation voltage. TAB 3 2 1 TO-220 Figure 1. Internal schematic diagram Table 1. Device summary Order code 2ST31A Marking 2ST31A Package TO-220 Dece.

2ST31A Datasheet (377.28 KB)

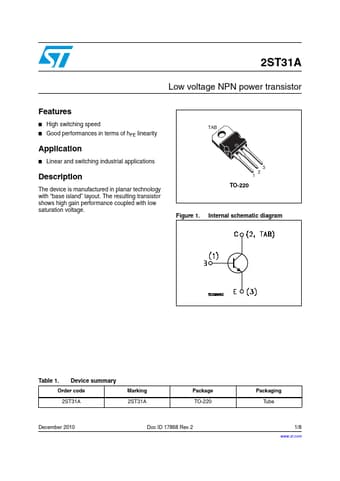

Preview of 2ST31A PDF

Datasheet Details

Part number:

2ST31A

Manufacturer:

STMicroelectronics ↗

File Size:

377.28 KB

Description:

Low voltage npn power transistor.
