2ST15300 Datasheet, Transistors, STMicroelectronics

2ST15300 Features

  • Transistors VCBO IC(max.) 300 V 5A
  • 100 krad
  • Linear gain characteristics
  • Inductive load ruggedness HFE at 0.6 V, 250 mA > 55 Tj(max.) 200 °C Description The 2S

PDF File Details

Part number:

2ST15300

Manufacturer:

STMicroelectronics ↗

File Size:

312.16kb

Download:

📄 Datasheet

Description:

Rad-hard npn bipolar transistors. The 2ST15300 is a power bipolar transistor able to operate under severe environment conditions and radiation exposure. It offers hig

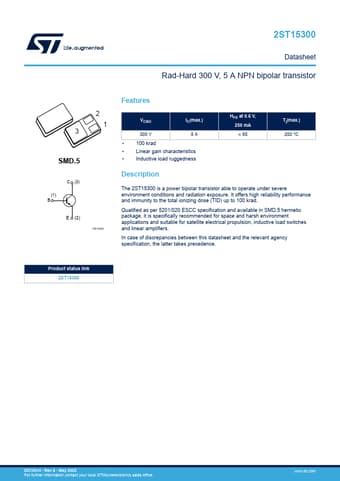

Datasheet Preview: 2ST15300 📥 Download PDF (312.16kb)
Page 2 of 2ST15300 Page 3 of 2ST15300

2ST15300 Application

  • Applications and suitable for satellite electrical propulsion, inductive load switches and linear amplifiers. In case of discrepancies between this
