M29F200BT Datasheet - ST Microelectronics

M29F200BT 2 Mbit 256Kb x8 or 128Kb x16 / Boot Block Single Supply Flash Memory

The M29F200B is a 2 Mbit (256Kb x8 or 128Kb x16) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single 5V supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The M29F200B is fully b.
M29F200BT M29F200BB 2 Mbit (256Kb x8 or 128Kb x16, Boot Block) Single Supply Flash Memory PRELIMINARY DATA s SINGLE 5V±10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS ACCESS TIME: 45ns PROGRAMMING TIME 8µs per Byte/Word typical 7 MEMORY BLOCKS 1 Boot Block (Top or Bottom Location) 2 Parameter and 4 Main Blocks 1 44 s s s s PROGRAM/ERASE CONTROLLER Embedded Byte/Word Program algorithm Embedded Multi-Block/Chip Erase algorithm

M29F200BT Features

* Lockout Voltage, VLKO. This prevents Bus Write operations from accidentally damaging the data during power up, power down and power surges. If the

M29F200BT_STMicroelectronics.pdf

Preview of M29F200BT PDF

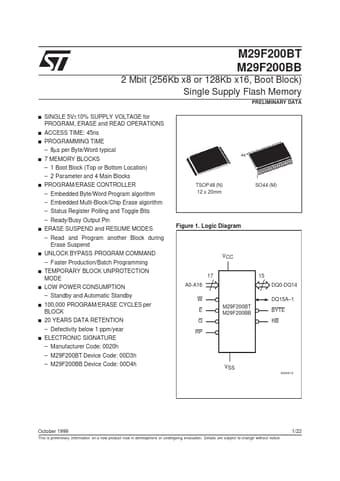

M29F200BT Datasheet Preview Page 2 M29F200BT Datasheet Preview Page 3

Datasheet Details

Part number:

M29F200BT

Manufacturer:

STMicroelectronics ↗

File Size:

146.32 KB

Description:

2 mbit 256kb x8 or 128kb x16 / boot block single supply flash memory.
