M29W010B 1 Mbit 128Kb x8 / Uniform Block Low Voltage Single Supply Flash Memory

The M29W010B is a 1 Mbit (128Kb x8) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V) supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The memory i.

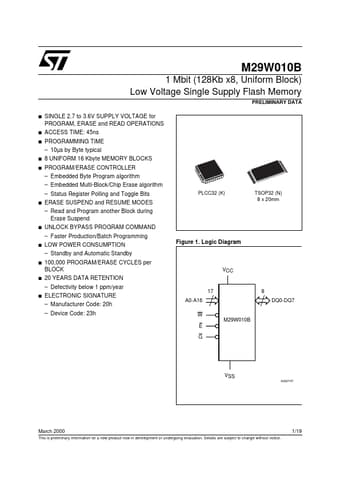

M29W010B 1 Mbit (128Kb x8, Uniform Block) Low Voltage Single Supply Flash Memory PRELIMINARY DATA s SINGLE 2.7 to 3.6V SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS ACCESS TIME: 45ns PROGRAMMING TIME 10µs by Byte typical 8 UNIFORM 16 Kbyte MEMORY BLOCKS PROGRAM/ERASE CONTROLLER Embedded Byte Program algorithm Embedded Multi-Block/Chip Erase algorithm Status Register Polling and Toggle Bits PLCC32 (K) TSOP32 (N) 8 x 20mm s s s s s ERASE SUSPEND.

M29W010B Features

* sequential Bus Write operations. Failure to observe a valid sequence of Bus Write opera

M29W010B_STMicroelectronics.pdf

M29W010B Datasheet Preview — Preview of M29W010B PDF

Datasheet Details

Part number:

M29W010B

Manufacturer:

STMicroelectronics ↗

File Size:

156.98 KB

Description:

1 mbit 128kb x8 / uniform block low voltage single supply flash memory.
