SD1398 Datasheet, Applications, ST Microelectronics

PDF File Details

Part number:

SD1398

Manufacturer:

STMicroelectronics ↗

File Size:

107.89kb

Download:

📄 Datasheet

Description:

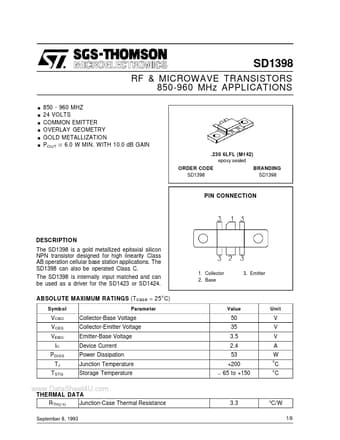

Rf & microwave transistors 850-960 mhz applications. The SD1398 is a gold metallized epitaxial silicon NPN transistor designed for high linearity Class AB operation cellular base station

SD1398 Application

• Applications . . . . . . 850 - 960 MHZ 24 VOLTS COMMON EMITTER OVERLAY GEOMETRY GOLD METALLIZATION P OUT = 6.0 W MIN. WITH 10.0 dB GAIN .230 6LFL
