SD1480 Datasheet - ST Microelectronics

SD1480 RF & MICROWAVE TRANSISTORS VHF APPLICATIONS

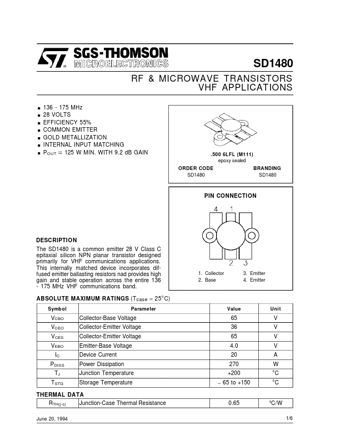

The SD1480 is a common emitter 28 V Class C epitaxial silicon NPN planar transistor designed primarily for VHF communications applications. This internally matched device incorporates diffused emitter ballasting resistors nad provides high gain and stable operation across the entire 136 - 175 MHz VH.

SD1480_STMicroelectronics.pdf

Preview of SD1480 PDF
SD1480 Datasheet Preview Page 2 SD1480 Datasheet Preview Page 3

Datasheet Details

Part number:

SD1480

Manufacturer:

STMicroelectronics ↗

File Size:

78.07 KB

Description:

Rf & microwave transistors vhf applications.
