SD1489

RF & MICROWAVE TRANSISTORS TV/LINEAR APPLICATIONS

SD1489 General Description

The SD1489 is a gold metallized epitaxial silicon NPN planar transistor using diffused emitter ballast resistors for high linearity Class AB operation in UHF and Band IV, V television transmitters and transposers. ABSOLUTE MAXIMUM RATINGS (T case = 25 ° C) Symbol Parameter Value Unit 1. Collector 2.

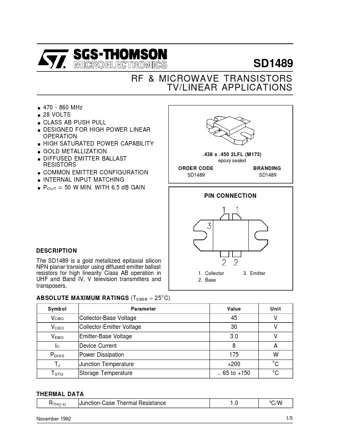

SD1489 Datasheet (66.28 KB)

Preview of SD1489 PDF

Datasheet Details

Part number:

SD1489

Manufacturer:

STMicroelectronics ↗

File Size:

66.28 KB

Description:

Rf & microwave transistors tv/linear applications.
SD1489 RF & MICROWAVE TRANSISTORS TV/LINEAR APPLICATIONS . . . . . . . . . . 470 - 860 MHz 28 VOLTS CLASS AB PUSH PULL DESIGNED FOR HIGH POWER LINEA.
