STDD15 - LOW CAPACITANCE DETECTION DIODE

ST Microelectronics

The STDD15 by ST Microelectronics is a LOW CAPACITANCE DETECTION DIODE. Below is the official datasheet preview.

Datasheet Details

Part number	STDD15
Manufacturer	STMicroelectronics
File Size	42.58 KB
Description	LOW CAPACITANCE DETECTION DIODE
Datasheet	STDD15_STMicroelectronics.pdf

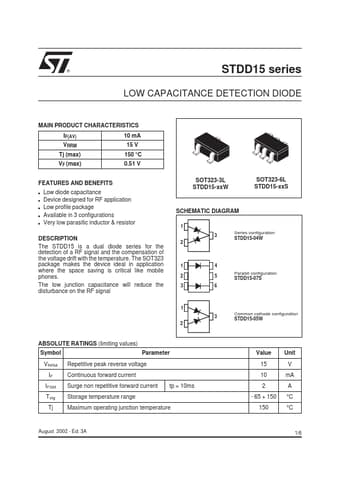

Additional preview pages of the STDD15 datasheet.

The STDD15 is a dual diode series for the detection of a RF signal and the compensation of the voltage drift with the temperature.

s s 10 mA 15 V 150 °C 0.51 V SOT323-3L STDD15-xxW SOT323-6L STDD15-xxS s s s Low diode capacitance Device designed for RF.
