STD10NF06L

N-CHANNEL POWER MOSFET

ST Microelectronics

STD10NF06L General Description

This MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced high-efficiency, high-frequency isolated DC-DC converters for Telecom and Computer applica.

STD10NF06L Datasheet (302.21 KB)

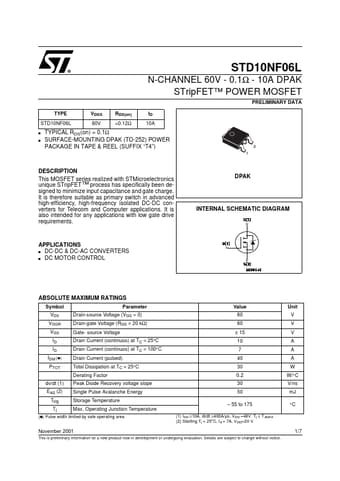

STD10NF06L Datasheet Preview — Preview of STD10NF06L PDF

Datasheet Details

Part number:

STD10NF06L

Manufacturer:

STMicroelectronics ↗

File Size:

302.21 KB

Description:

N-channel power mosfet.
N-CHANNEL 60V - 0.1Ω - 10A DPAK STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STD10NF06L s s STD10NF06L VDSS 60V RDS(on) <0.12Ω ID 10A TYPICAL RDS.
