STD10NF10 - N-CHANNEL POWER MOSFET

STD10NF10 Description

N-CHANNEL 100V - 0.115 Ω - 13A IPAK/DPAK LOW GATE CHARGE STripFET™ II POWER MOSFET TYPE STD10NF10 s s s STD10NF10 VDSS 100 V RDS(on) <0.13 Ω ID 13.
This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate char.

STD10NF10 Applications

* It is also intended for any applications with low gate drive requirements. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Ptot dv/dt (1) Parameter Drain-source Voltage (VGS = 0)

📥 Download Datasheet

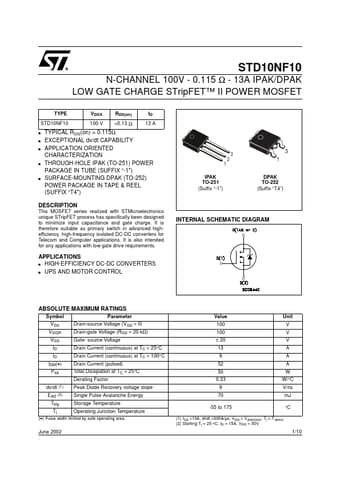

Preview of STD10NF10 PDF
