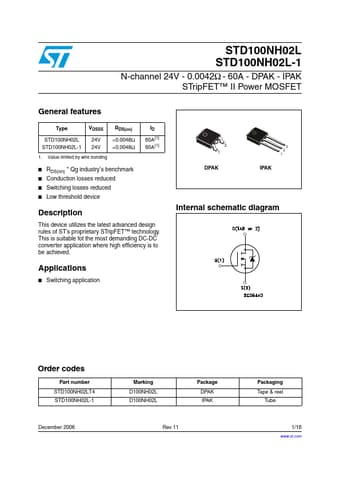

STD100NH02L-1 Datasheet, Mosfet, ST Microelectronics

STD100NH02L-1 Features

• Mosfet Type STD100NH02L STD100NH02L-1 1.
• VDSSS 24V 24V RDS(on) <0.0048Ω <0.0048Ω ID 60A(1) 60A(1) 1 3 2 1 3 Value limited by wire bonding RDS(on)

PDF File Details

Part number:

STD100NH02L-1

Manufacturer:

STMicroelectronics ↗

File Size:

496.90kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology. This is suitable fot the most demandi

STD100NH02L-1 Application

• Applications
• Switching application Order codes Part number STD100NH02LT4 STD100NH02L-1 Marking D100NH02L D100NH02L Package DPAK IPAK Pac
