STD100NH03L, N-CHANNEL POWER MOSFET

N-CHANNEL 30V - 0.005 Ω - 60A DPAK STripFET™ III POWER MOSFET TYPE STD100NH03L s s s s s s STD100NH03L VDSS 30 V RDS(on) < 0.0055 Ω ID 60 A(2) TY.
The STD100NH03L utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology.

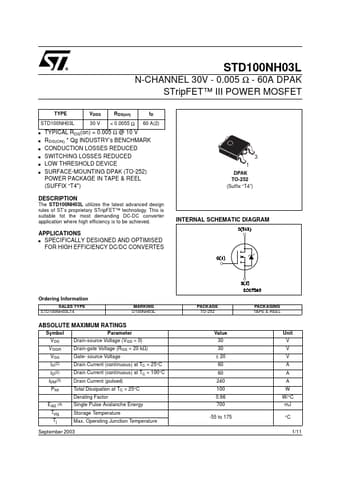

datasheet Preview Page 1 from Datasheet4u.com

STD100NH03L_STMicroelectronics.pdf

STD100NH03L Datasheet Preview — Preview of STD100NH03L PDF

Datasheet Details

Part number:

STD100NH03L

Manufacturer:

STMicroelectronics ↗

File Size:

513.78 KB

Description:

N-CHANNEL POWER MOSFET

Applications

* s SPECIFICALLY DESIGNED AND OPTIMISED FOR HIGH EFFICIENCY DC/DC CONVERTES Ordering Information SALES TYPE STD100NH03LT4 MARKING D100NH03L PACKAGE TO-252 PACKAGING TAPE & REEL ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(2) ID(2) IDM(3) Ptot EAS (4) Tstg Tj Parameter Drain-source Voltage (VGS =
