STD100NH02L - N-CHANNEL POWER MOSFET

STD100NH02L Description

N-CHANNEL 24V - 0.0042 Ω - 60A DPAK/IPAK STripFET™ III POWER MOSFET TYPE STD100NH02L s s s s s s s STD100NH02L VDSS 24 V RDS(on) < 0.0048 Ω ID 60 .
The STD100NH02L utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology.

STD100NH02L Applications

* s SPECIFICALLY DESIGNED AND OPTIMISED FOR HIGH EFFICIENCY DC/DC CONVERTES ABSOLUTE MAXIMUM RATINGS Symbol Vspike(1) VDS VDGR VGS ID(2) ID(2) IDM(3) Ptot EAS (4) Tstg Tj Parameter Drain-source Voltage Rating Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain C

📥 Download Datasheet

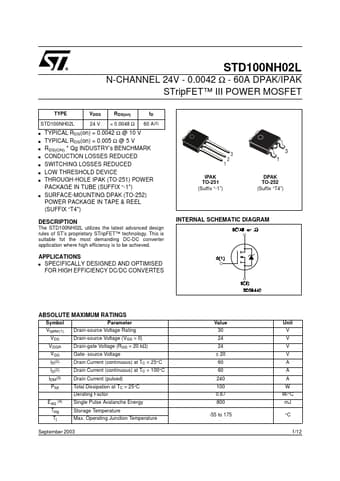

Preview of STD100NH02L PDF
datasheet Preview Page 2 datasheet Preview Page 3
