STD10NF10-1 Datasheet, Mosfet, ST Microelectronics

STD10NF10-1 Features

• Mosfet Type STD10NF10 STD10NF10-1
• VDSSS 100V 100V RDS(on) <0.13Ω <0.13Ω ID 13A 13A 3 1 2 1 3 Exceptional dv/dt capability Application oriented characterization DPAK I

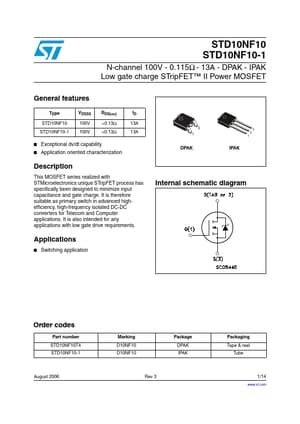

PDF File Details

Part number:

STD10NF10-1

Manufacturer:

STMicroelectronics ↗

File Size:

480.95kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacita

STD10NF10-1 Application

• Applications It is also intended for any applications with low gate drive requirements. Internal schematic diagram Applications
• Switch
