STE400P

10/100 Fast Ethernet 4 Port Transceiver

STE400P Features

* PQFP208 ORDERING NUMBER: STE400P 10BASE-T compliant s s Support for IEEE802.3x flow control IEEE802.3u Auto-Negotiation support for 10BASE-T and 100BASE-TX MII interface Standard CSMA/CD or full duplex supported 2.1 INDUSTRY STANDARD s s s IEEE802.3u 100BASE-TX and IEEE802.3 Figure 1. BLOCK D

STE400P General Description

The STE400P, also referred to as STEPHY4, is a high performance Fast Ethernet physical layer interface for 10BASE-T and 100BASE-TX applications. It was designed with advanced CMOS technology to provide a Media Independent Interface (MII) for easy attachment to 10/100 Media Access Controllers (MAC) .

STE400P Datasheet (232.25 KB)

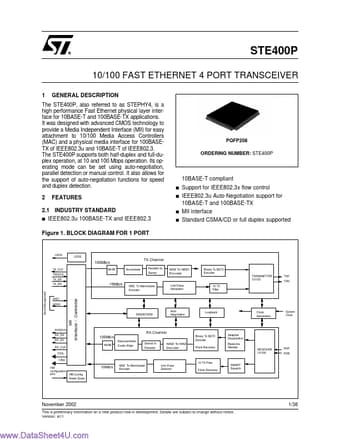

Preview of STE400P PDF

Datasheet Details

Part number:

STE400P

Manufacturer:

STMicroelectronics ↗

File Size:

232.25 KB

Description:

10/100 fast ethernet 4 port transceiver.
