STE40NK90ZD Datasheet, Mosfet, ST Microelectronics

STE40NK90ZD Features

  • Mosfet TYPE STE40NK90ZD s s s s s s Figure 1: Package ID 40 A Pw 600 W VDSS 900 V RDS(on) < 0.18 Ω TYPICAL RDS(on) = 0.14 Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED GATE CHARG

PDF File Details

Part number:

STE40NK90ZD

Manufacturer:

STMicroelectronics ↗

File Size:

295.50kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The SuperFREDMesh™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addi

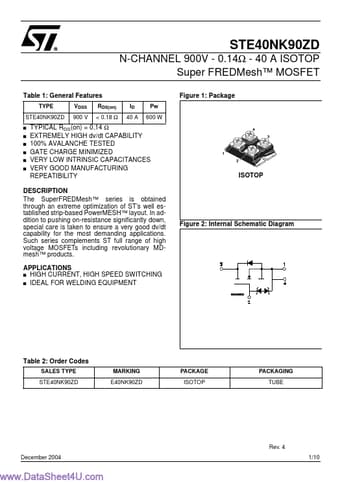

Datasheet Preview: STE40NK90ZD 📥 Download PDF (295.50kb)
Page 2 of STE40NK90ZD Page 3 of STE40NK90ZD

STE40NK90ZD Application

  • Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. APPLICATIONS s HIGH CURRENT, H
