STE40NC60

N-CHANNEL Power MOSFET

ST Microelectronics

STE40NC60 General Description

The PowerMESH™ II is the evolution of the first generation of MESH OVERLAY™ . The layout refinements introduced greatly improve the Ron
*area figure of merit while keeping the device at the leading edge for what concerns swithing speed, gate charge and ruggedness. ISOTOP INTERNAL SCHEMATIC DIAG.

STE40NC60 Datasheet (107.66 KB)

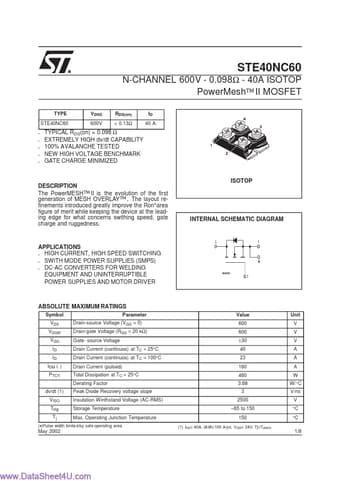

STE40NC60 Datasheet Preview — Preview of STE40NC60 PDF

Datasheet Details

Part number:

STE40NC60

Manufacturer:

STMicroelectronics ↗

File Size:

107.66 KB

Description:

N-channel power mosfet.
N-CHANNEL 600V - 0.098Ω - 40A ISOTOP PowerMesh™ II MOSFET TYPE STE40NC60 n n n n n STE40NC60 VDSS 600V RDS(on) < 0.13Ω ID 40 A TYPICAL RDS(on) = .
