STE45NK80ZD N-CHANNEL Power MOSFET

STE45NK80ZD Description

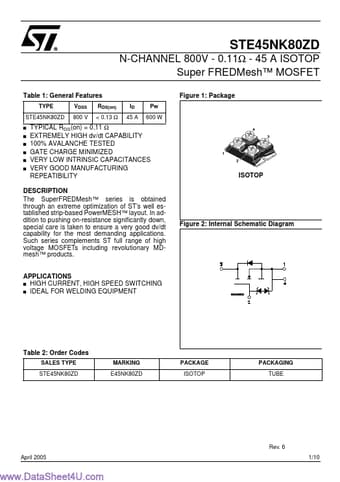

STE45NK80ZD N-CHANNEL 800V - 0.11Ω - 45 A ISOTOP Super FREDMesh™ MOSFET Table 1: General .
The SuperFREDMesh™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

STE45NK80ZD Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Figure 2: Internal Schematic Diagram APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR WELDING EQUIPMENT Table 2: Order Codes SALES TYPE STE45NK80ZD MARKING E45NK80ZD PACKAGE ISOTO
