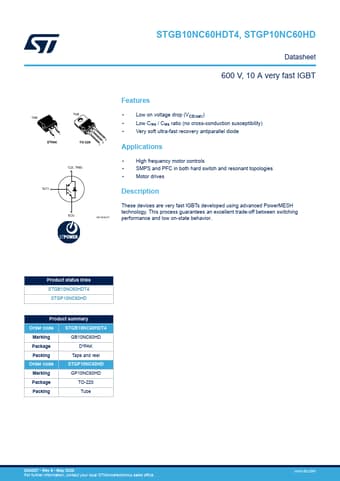

STGP10NC60HD

N-CHANNEL IGBT

ST Microelectronics

STGP10NC60HD Features

* Low on-voltage drop (VCE(sat))

* Low CRES / CIES ratio (no cross-conduction susceptibility)

* Very soft ultra fast recovery antiparallel diode Applications

* High frequency motor controls

* SMPS and PFC in both hard switch and resonant topologies

* Motor drivers Description

STGP10NC60HD General Description

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. 3 1 D²PAK 2 3 1 DPAK 3 2 1 TO-220FP 3 2 1 TO-220 Figure 1. Internal schematic diagram Table 1. Device summary Order codes Marking STGB10NC60HDT4 G.
