STGP14N60D, STGF14N60D 14 A - 600 V - Short Circuit Rugged IGBT

STGP14N60D Description

www.DataSheet4U.com STGF14N60D STGP14N60D 14 A - 600 V - short circuit rugged IGBT Preliminary Data .
This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior.

STGP14N60D Features

* Low on-voltage drop (VCE(sat)) Operating junction temperature up to 175 °C Low Cres / Cies ratio (no cross conduction susceptibility) Tight parameter distribution Ultra fast soft recovery antiparallel diode Short circuit rugged 1 2 1 3 2 3 TO-220FP TO-220 Ap

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STGP14N60D, STGF14N60D. Please refer to the document for exact specifications by model.

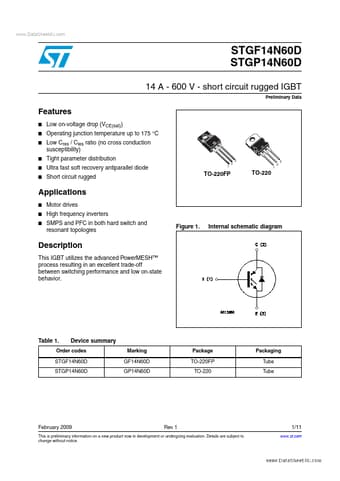

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STGP14N60D, STGF14N60D
Manufacturer
STMicroelectronics ↗
File Size
444.14 KB
Datasheet
STGF14N60D_STMicroelectronics.pdf
Description
14 A - 600 V - Short Circuit Rugged IGBT
Note
This datasheet PDF includes multiple part numbers: STGP14N60D, STGF14N60D.
Please refer to the document for exact specifications by model.
