STI70N10F4

Power MOSFETs

ST Microelectronics

STI70N10F4 Features

* Type STI70N10F4

* VDSS 100 V RDS(on) max < 0.0165 Ω ID 65 A Exceptional dv/dt capability Extremely low on-resistance RDS(on) 100% avalanche tested I²PAK 3 12 Application

* Switching applications Description This STripFET™ DeepGATE™ Power MOSFET technology is among the late

STI70N10F4 General Description

This STripFET™ DeepGATE™ Power MOSFET technology is among the latest improvements, which have been especially tailored to minimize on-state resistance, with a new gate structure, providing superior switching performance. Figure 1. Internal schematic diagram $ ' 3 !-V Table 1. .

STI70N10F4 Datasheet (741.10 KB)

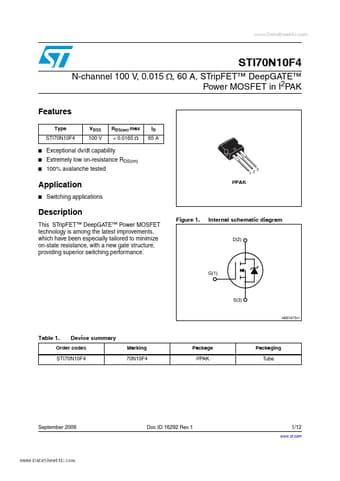

STI70N10F4 Datasheet Preview — Preview of STI70N10F4 PDF

Datasheet Details

Part number:

STI70N10F4

Manufacturer:

STMicroelectronics ↗

File Size:

741.10 KB

Description:

Power mosfets.
