STi7100, STI, Low cost HDTV set-top box decoder

Confidential ® STx7100 (STb7100, STi7100, STm7100) Low-cost HDTV set-top box decoder for H.264/AVC and MPEG-2 .

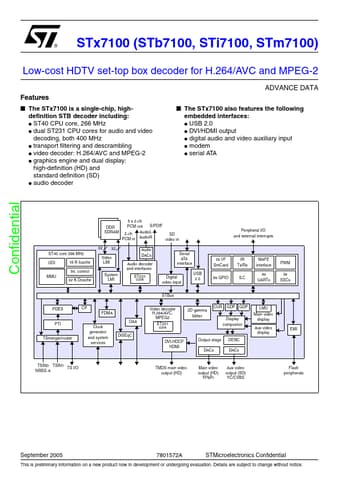

datasheet Preview Page 1 from Datasheet4u.com

STI-7100.pdf

STi7100 Datasheet Preview — This datasheet PDF includes multiple part numbers: STi7100, STI. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STi7100, STI

Manufacturer:

STMicroelectronics ↗

File Size:

8.09 MB

Description:

Low cost HDTV set-top box decoder

Note:

This datasheet PDF includes multiple part numbers: STi7100, STI.
Please refer to the document for exact specifications by model.

Features

* The STx7100 is a single-chip, highdefinition STB decoder including:
* ST40 CPU core, 266 MHz
* dual ST231 CPU cores for audio and video decoding, both 400 MHz
* transport filtering and descrambling
* video decoder: H.264/AVC and MPEG-2
* graphics engine and dual display: hi

Applications

* overview
* . . 20 Chapter 2 Device variants
* . . . 23 Chapter 3 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 3.10 3.11 3.12 3.13 3.14 3.15 3.16 3.17 3.18 3.1
