STI7109 - Low-cost HDTV set-top box decoder

STMicroelectronics

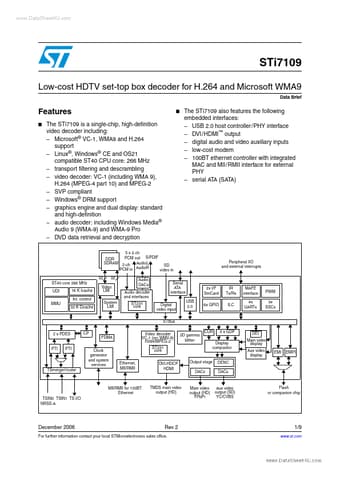

STI7109 Datasheet Preview — Preview of STI7109 PDF

Datasheet Details

Part number	STI7109
Manufacturer	STMicroelectronics ↗
File Size	240.44 KB
Description	Low-cost HDTV set-top box decoder
Datasheet	STI7109_STMicroelectronics.pdf

STI7109 Product details

Description

STi7109 1 Description The STi7109 is a new generation, high-definition set-top box / DVD decoder chip, and provides very high performance for low-cost HD systems.STi7109 includes both Windows Media Video 9 and H.264 video decoders for new, low bit rate applications.Based on the Omega2 (STBus) architecture, this system-on-chip is a full back-end processor for digital terrestrial, satellite, cable, DSL and IP client high-definition set-top boxes, compliant with ATSC, SMPTE VC-1, DVB, DIRECTV,

Features

The STi7109 is a single-chip, high-definition video decoder including:.
Microsoft® VC-1, WMA9 and H.264 support.
Linux®, Windows® CE and OS21 compatible ST40 CPU core: 266 MHz.
transport filtering and descrambling.
video decoder: VC-1 (including WMA 9), H.264 (MPEG-4 part 10) and MPEG-2.
SVP compliant.
Windows® DRM support.
graphics engine and dual display: standard and high-definition.
audio decoder: including.
