STK850 - N-CHANNEL Power MOSFET

Datasheet Summary

Description

This Power MOSFET is the latest development of STMicroelectronics unique “Single Feature Size™” strip-based process.

Features

  • Type STK800.
  • VDSS 30V RDS(on).

📥 Download Datasheet

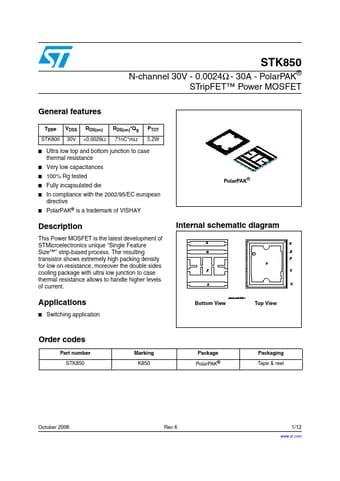

Datasheet preview – STK850

Datasheet Details

Part number STK850
Manufacturer STMicroelectronics
File Size 294.99 KB
Description N-CHANNEL Power MOSFET
Datasheet download datasheet STK850 Datasheet
