STLC3065 Datasheet - ST Microelectronics

STLC3065 WLL SUBSCRIBER LINE INTERFACE CIRCUIT

The STLC3065 is a SLIC device specifically designed for WLL (Wireless Local Loop) application. One of the distinctive characteristics of this device is the ability to operate with a single supply voltage (from +5.5V to +15.8V) and self generate the negative battery by means of an on chip DC/DC conve.

STLC3065 Features

* OF THE BORSHT FUNCTION SINGLE SUPPLY (5.5 TO 15.8V) BUILT IN DC/DC CONVERTER CONTROLLER. SOFT BATTERY REVERSAL WITH PROGRAMMABLE TRANSITION TIME. ON-HOOK TRANSMISSION. PROGRAMMABLE OFF-HOOK DETECTOR THRESHOLD METERING PULSE GENERATION AND FILTER INTEGRATED RINGING INTEGRATED RING TRIP DUAL 2W PORT F

STLC3065 Datasheet (194.47 KB)

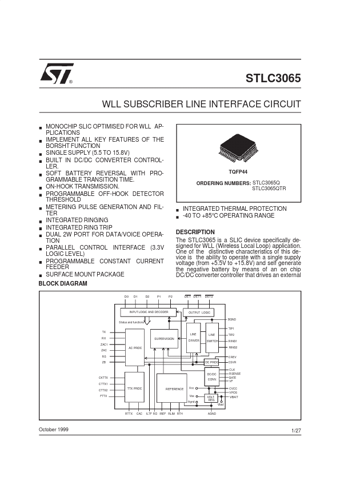

Preview of STLC3065 PDF
STLC3065 Datasheet Preview Page 2 STLC3065 Datasheet Preview Page 3

Datasheet Details

Part number:

STLC3065

Manufacturer:

STMicroelectronics ↗

File Size:

194.47 KB

Description:

Wll subscriber line interface circuit.
