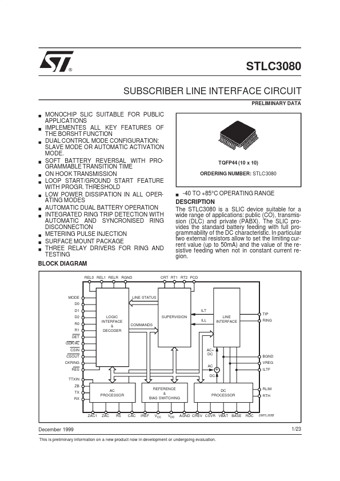

STLC3080 SUBSCRIBER LINE INTERFACE CIRCUIT

The STLC3080 is a SLIC device suitable for a wide range of applications: public (CO), transmission (DLC) and private (PABX). The SLIC provides the standard battery feeding with full programmability of the DC characteristic. In particular two external resistors allow to set the limiting current value.

STLC3080 Features

* OF THE BORSHT FUNCTION DUAL CONTROL MODE CONFIGURATION: SLAVE MODE OR AUTOMATIC ACTIVATION MODE. SOFT BATTERY REVERSAL WITH PROGRAMMABLE TRANSITION TIME ON HOOK TRANSMISSION LOOP START/GROUND START FEATURE WITH PROGR. THRESHOLD LOW POWER DISSIPATION IN ALL OPERATING MODES AUTOMATIC DUAL BATTERY OPER
