STLC4560

Single chip 802.11b/g WLAN radio

STLC4560 Features

* Extremely small footprint

* Ultra low power consumption

* Fully compliant with the IEEE 802.11b and 802.11g WLAN standards

* Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbit/s OFDM, 11 and 5.5 Mbit/s CCK and legacy 2 and 1 Mbit/s data rates

* Single chip 802.11b/g WLAN solutio

STLC4560 General Description

The STLC4560 is a single chip 802.11b/g WLAN radio for embedded, low-power and very small form factor mobile applications. The product conforms to the IEEE 802.11b and 802.11g protocols operating in the 2.45 GHz ISM frequency band supporting OFDM data rates of 54, 48, 36, 24, 18, 12, 9, and 6 Mbit/s.

STLC4560 Datasheet (90.40 KB)

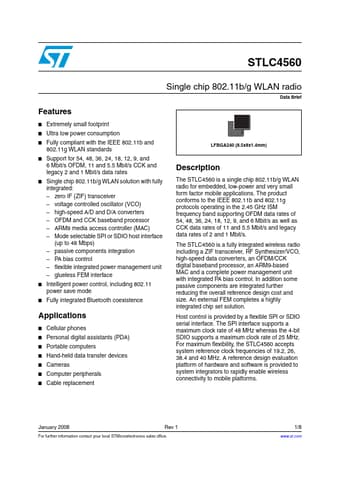

Preview of STLC4560 PDF

Datasheet Details

Part number:

STLC4560

Manufacturer:

STMicroelectronics ↗

File Size:

90.40 KB

Description:

Single chip 802.11b/g wlan radio.
