STLC2411

BLUETOOTH BASEBAND

STLC2411 Features

* Pin to pin compatible with the previous version STLC2410B Ericsson Technology Licensing Baseband Core (EBC) Bluetooth™ specification compliance: V1.1 and V1.2 Point-to-point, point-to-multi-point (up to 7 slaves) and scatternet capability Asynchronous Connection Oriented (logical transport) link Syn

STLC2411 General Description

The STLC2411 offers a compact and complete solution for short-range wireless connectivity. It incorporates all the lower layer functions of the Bluetooth™ protocol. The microcontroller allows the support of all data packets of Bluetooth™ in addition to voice. The embedded controller can be used to .

STLC2411 Datasheet (216.90 KB)

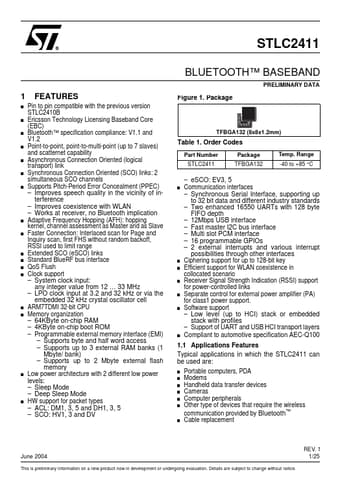

Preview of STLC2411 PDF

Datasheet Details

Part number:

STLC2411

Manufacturer:

STMicroelectronics ↗

File Size:

216.90 KB

Description:

Bluetooth baseband.
