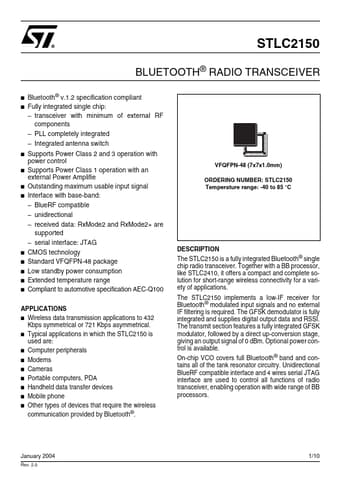

STLC2150 BLUETOOTH RADIO TRANSCEIVER

The STLC2150 is a fully integrated Bluetooth® single chip radio transceiver. Together with a BB processor, like STLC2410, it offers a compact and complete solution for short-range wireless connectivity for a variety of applications. The STLC2150 implements a low-IF receiver for Bluetooth® modulated .

STLC2150 BLUETOOTH® RADIO TRANSCEIVER Bluetooth® v.1.2 specification compliant Fully integrated single chip: transceiver with minimum of external RF components PLL completely integrated Integrated antenna switch Supports Power Class 2 and 3 operation with power control Supports Power Class 1 operation with an external Power Amplifie Outstanding maximum usable input signal Interface with base-band: BlueRF compatible

STLC2150 Features

* a fully integrated GFSK modulator, followed by a direct up-conversion stage, giving an output signal of 0 dBm. Optional power control is available. On-chip VCO covers full Bluetooth® band and contains all of the tank resonator circuitry. Unidirectional BlueRF compatible interface and 4 wires serial
