STLC2416 Datasheet, Flash, ST Microelectronics

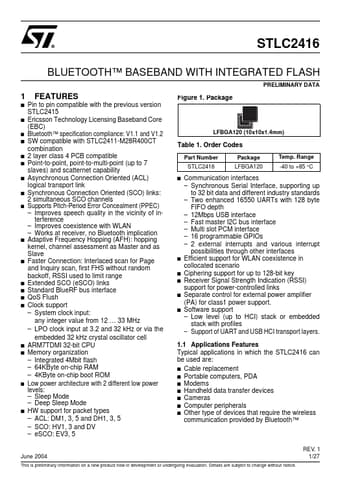

STLC2416 Features

• Flash Pin to pin compatible with the previous version STLC2415 Ericsson Technology Licensing Baseband Core (EBC) Bluetooth™ specification compliance: V1.1 and V1.2 SW compatible with STLC2411

PDF File Details

Part number:

STLC2416

Manufacturer:

STMicroelectronics ↗

File Size:

251.00kb

Download:

📄 Datasheet

Description:

Bluetooth baseband with integrated flash. The STLC2416 from STMicroelectronics is a Bluetooth™ baseband controller with integrated 4 Mbit flash memory. Together with a Blueto

STLC2416 Application

• Applications Features Typical applications in which the STLC2416 can be used are:
• Cable replacement
• Portable computers, PDA
