STLC2410B

BLUETOOTH BASEBAND

STLC2410B Features

* Bluetooth® V1.1 specification compliant Point-to-point, point-to-multi-point (up to 7 slaves) and scatternet capability Asynchronous Connection-Less (ACL) link support giving data rates up to 721kbps Synchronous Connection-Oriented (SCO) link Standard BlueRF bus interface ARM7TDMI CPU

* 32-b

STLC2410B General Description

The STLC2410B offers a compact and complete solution for short-range wireless connectivity. It incorporates all the lower layer functions of the Bluetooth® protocol. The microcontroller allows the support of all data packets of Bluetooth® in addition to voice. The embedded controller can be used to .

STLC2410B Datasheet (305.15 KB)

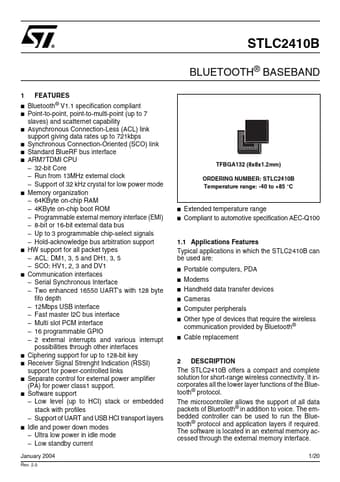

Preview of STLC2410B PDF

Datasheet Details

Part number:

STLC2410B

Manufacturer:

STMicroelectronics ↗

File Size:

305.15 KB

Description:

Bluetooth baseband.
