STLC5460, LINE CARD INTERFACE CONTROLLER

The Line Card Interface Controller, STLC5460, is a monolithic switching device for the path control of up to 128 channels of 16, 32, 64 kbps bandwidth.

Two consecutive 64 kbps channels may also be handled as a quasi single 128 kbps channel.

For these channels, the LCIC performs nonblocking space tim

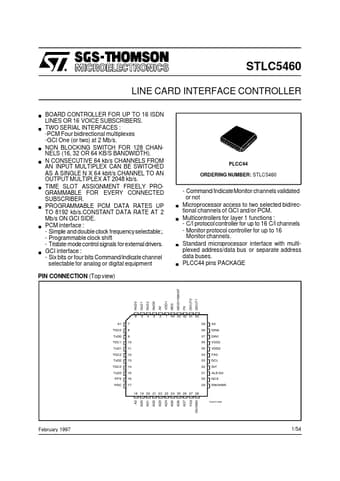

STLC5460 LINE CARD INTERFACE CONTROLLER BOARD CONTROLLER FOR UP TO 16 ISDN LINES OR 16 VOICE SUBSCRIBERS.

TWO SERIAL INTERFACES : -PCM Four bidirectional multiplexes -GCI One (or two) at 2 Mb/s.

NON BLOCKING SWITCH FOR 128 CHANNELS (16, 32 OR 64 KB/S BANDWIDTH).

N CONSECUTIVE 64 kb/s CHANNELS FROM AN INPUT MULTIPLEX CAN BE SWITCHED AS A SINGLE N X 64 kbit/s CHANNEL TO AN OUTPUT MULTIPLEX AT 2048 kb/s.

TIME SLOT ASSIGNMENT FREELY PROGRAMMABLE FOR EVERY CONNECTED SUBSCRIBER.

PROGRAMMABLE PCM DATA

STLC5460 Features

* h between two pulses can be also one bit time. After reset, t
