STLUX385 Datasheet - ST Microelectronics

Digital controller

STLUX385 Features

* Core

* Max fCPU: 16 MHz

* Advanced STM8 core with Harvard architecture and 3-stage pipeline

* Extended instruction set Memories

* Flash and EEPROM with read while write (RWW) and error correction code (ECC) capability

* Program memory: 32 Kbytes Flash;

STLUX385 General Description

The STLUX385 is a new STMicroelectronics low power 8-bit microcontroller with special peripherals tailored for lighting and power supply applications. * January 2013 Doc ID 024169 Rev 1 1/10 www.st.com 10 This is preliminary information on a new product now in development or undergoing eval.

STLUX385 Datasheet (229.17 KB)

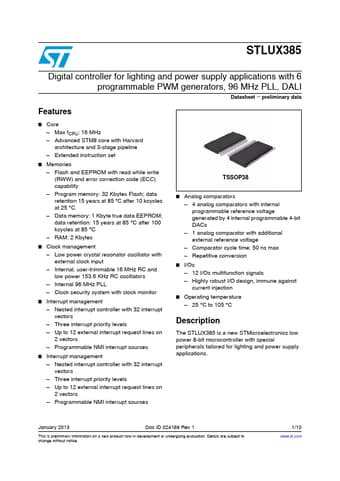

STLUX385 Datasheet Preview — Preview of STLUX385 PDF

Datasheet Details

Part number:

STLUX385

Manufacturer:

STMicroelectronics ↗

File Size:

229.17 KB

Description:

Digital controller.
STLUX385 Digital controller for lighting and power supply applications with 6 programmable PWM generators, 96 MHz PLL, DALI Datasheet prelim.
