STLVDS47 Datasheet (ST Microelectronics) - 3V LVDS QUAD CMOS DIFFERENTIAL LINE DRIVER

STLVDS47, 3V LVDS QUAD CMOS DIFFERENTIAL LINE DRIVER

The STLVDS47 is a quad CMOS flow-through differential line driver designed for applications requiring ultra low power dissipation and high data rate.

The device is designed to support data rates in excess of 400Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) techology.

The STLVDS4

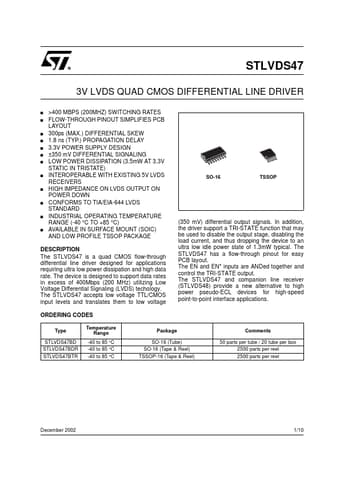

www.DataSheet4U.com STLVDS47 3V LVDS QUAD CMOS DIFFERENTIAL LINE DRIVER s s s s s s s s s s s s >400 MBPS (200MHZ) SWITCHING RATES FLOW-THROUGH PINOUT SIMPLIFIES PCB LAYOUT 300ps (MAX.) DIFFERENTIAL SKEW 1.8 ns (TYP.) PROPAGATION DELAY 3.3V POWER SUPPLY DESIGN ±350 mV DIFFERENTIAL SIGNALING LOW POWER DISSIPATION (3.5mW AT 3.3V STATIC IN TRISTATE) INTEROPERABLE WITH EXISTING 5V LVDS RECEIVERS HIGH IMPEDANCE ON LVDS OUTPUT ON POWER DOWN CONFORMS TO TIA/EIA-644 LVDS STANDARD INDUSTRIAL OPER
