STM6825, STM6321 - 5-pin supervisor

ST Microelectronics

The STM6825 by ST Microelectronics is a 5-pin supervisor. Below is the official datasheet preview.

📥 Download Datasheet

STM6825 5-pin supervisor by ST Microelectronics - Datasheet Preview — Official preview page of the STM6825 5-pin supervisor datasheet (ST Microelectronics).

Datasheet Details

Part number	STM6825, STM6321
Manufacturer	STMicroelectronics
File Size	560.58 KB
Description	5-pin supervisor
Datasheet	STM6321_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM6825, STM6321. Please refer to the document for exact specifications by model.
Additional preview pages of the STM6825 datasheet.

STM6825 Product details

Description

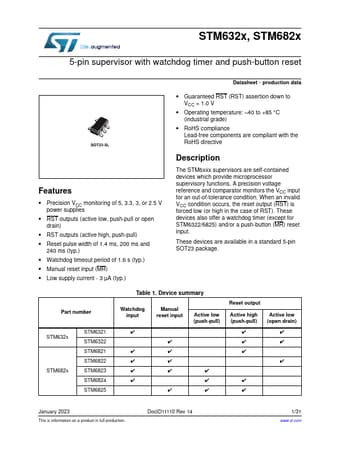

The STM6xxx supervisors are self-contained devices which provide microprocessor supervisory functions.

Features

Precision VCC monitoring of 5, 3.3, 3, or 2.5 V power supplies.
RST outputs (active low, push-pull or open drain).
RST outputs (active high, push-pull).
Reset pulse width of 1.4 ms, 200 ms and 240 ms (typ. ).
Watchdog timeout period of 1.6 s (typ. ).
Manual reset input (MR).
Low supply current - 3 µA (typ. ).
Guaranteed RST (RST) assertion down to VCC = 1.0 V.
Operating temperature:.
40 to +85 °C (industrial.
