STP14NF06 N-CHANNEL Power MOSFET

STP14NF06 Description

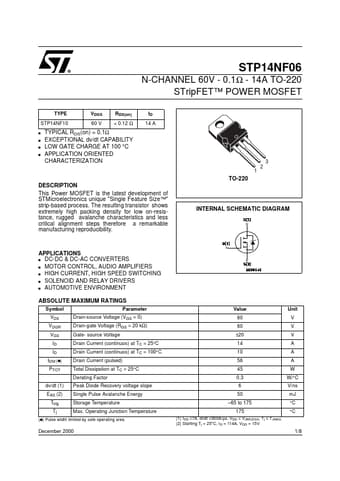

N-CHANNEL 60V - 0.1Ω - 14A TO-220 STripFET™ POWER MOSFET TYPE STP14NF10 s s s s STP14NF06 VDSS 60 V RDS(on) < 0.12 Ω ID 14 A TYPICAL RDS(on) = 0..
This Power MOSFET is the latest development of STMicroelectronics unique "Single Feature Size™" strip-based process.

STP14NF06 Applications

* s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s AUTOMOTIVE ENVIRONMENT ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) EAS (2) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltag
