STP140N8F7 N-CHANNEL POWER MOSFET

STP140N8F7 Description

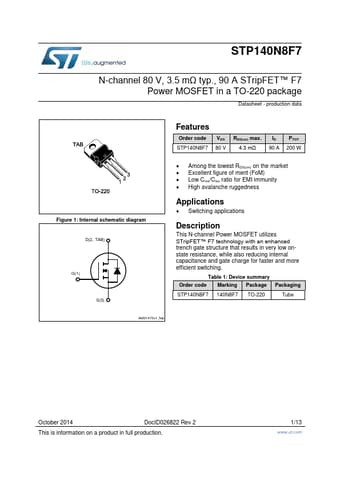

STP140N8F7 N-channel 80 V, 3.5 mΩ typ., 90 A STripFET™ F7 Power MOSFET in a TO-220 package Datasheet - production data Figure 1: Internal schematic .
This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while.

STP140N8F7 Features

* Order code STP140N8F7 VDS 80 V RDS(on) max. 4.3 mΩ ID 90 A PTOT 200 W
* Among the lowest RDS(on) on the market
* Excellent figure of merit (FoM)
* Low Crss/Ciss ratio for EMI immunity
