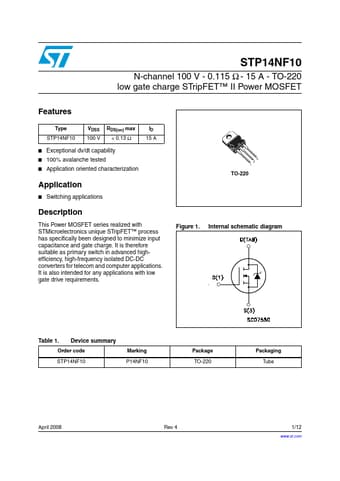

STP14NF10 Datasheet, Mosfet, ST Microelectronics

STP14NF10 Features

• Mosfet Type STP14NF10 VDSS RDS(on) max 100 V < 0.13 Ω ID 15 A
• Exceptional dv/dt capability
• 100% avalanche tested
• Application oriented characterization Applic

PDF File Details

Part number:

STP14NF10

Manufacturer:

STMicroelectronics ↗

File Size:

238.58kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input c

STP14NF10 Application

• Applications Description This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minim
