STP140N6F7 N-CHANNEL POWER MOSFET

STP140N6F7 Description

STP140N6F7 N-channel 60 V, 0.0031 Ω typ., 80 A STripFET™ F7 Power MOSFET in a TO-220 package Datasheet - production data Figure 1: Internal schemati.
This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while.

STP140N6F7 Features

* Order code STP140N6F7 VDS 60 V RDS(on) max. 0.0035 Ω ID 80 A PTOT 158 W
* Among the lowest RDS(on) on the market
* Excellent figure of merit (FoM)
* Low Crss/Ciss ratio for EMI immunity

📥 Download Datasheet

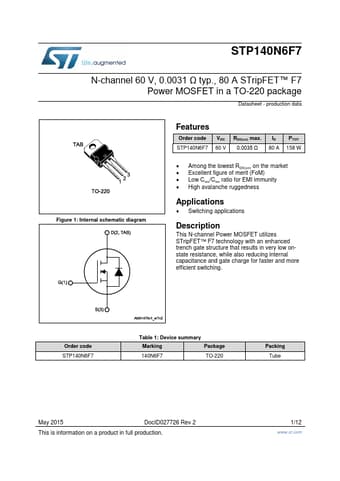

Preview of STP140N6F7 PDF
datasheet Preview Page 2 datasheet Preview Page 3
