STP140NF75 Datasheet, Mosfet, ST Microelectronics

PDF File Details

Part number:

STP140NF75

Manufacturer:

STMicroelectronics ↗

File Size:

518.81kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting tra

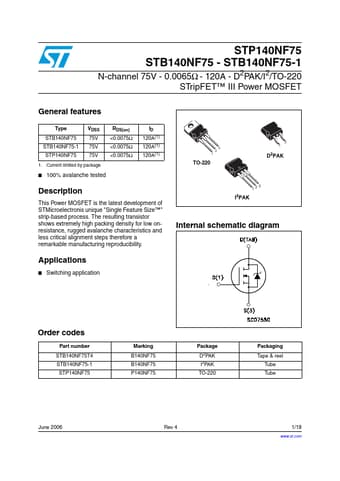

Datasheet Preview: STP140NF75 📥 Download PDF (518.81kb)
Page 2 of STP140NF75 Page 3 of STP140NF75

STP140NF75 Application

  • Applications s HIGH CURRENT, HIGH SWITCHING SPEED s SOLENOID AND RELAY DRIVERS s AUTOMOTIVE 42V BATTERY DRIVERS D2PAK TO-263 (Suffix “T4”) 3 1 2 I
