STP140NF55 N-CHANNEL POWER MOSFET

STP140NF55 Description

N-CHANNEL 55V - 0.0065 Ω - 80A TO-220/D²PAK STripFET™ II POWER MOSFET Table 1: General .
This Power Mosfet is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STP140NF55 Features

* TYPE STB140NF55 STP140NF55

STP140NF55 Applications

* MOTOR CONTROL
* HIGH CURRENT, SWITCHING APPLICATIONS
* AUTOMOTIVE ENVIRONMENT

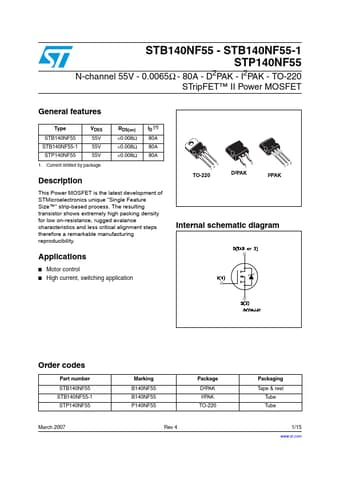

* 3 1 3 1 2 D2PAK TO-263 (Suffix “T4”) TO-220 Figure 2: Internal Schematic Diagram www. DataSheet4U. com Table 2: Order Codes Part Number STB140NF55T4 STP140NF55 MARKING B140NF55 P140NF55 PACKAGE D²PAK TO-2
