STP22NS25Z Datasheet, Mosfet, ST Microelectronics

STP22NS25Z Features

  • Mosfet Type STB22NS25Z STP22NS25Z VDSS 250V 250V RDS(on) <0.15Ω <0.15Ω
  • 100% avalanche tested
  • Extremely high dv/dt capability ID 22A 22A Description Using the latest h

PDF File Details

Part number:

STP22NS25Z

Manufacturer:

STMicroelectronics ↗

File Size:

292.27kb

Download:

📄 Datasheet

Description:

N-channel mosfet. Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of Power MOSFETs with outstan

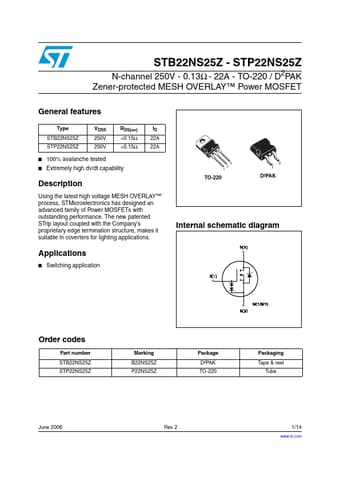

Datasheet Preview: STP22NS25Z 📥 Download PDF (292.27kb)
Page 2 of STP22NS25Z Page 3 of STP22NS25Z

STP22NS25Z Application

  • Applications Applications
  • Switching application 3 2 1 TO-220 3 1 D²PAK Internal schematic diagram Order codes Part number STB22NS25Z
