STP3NC70ZFP, STP3NC70Z N-CHANNEL MOSFET

ST Microelectronics

Description

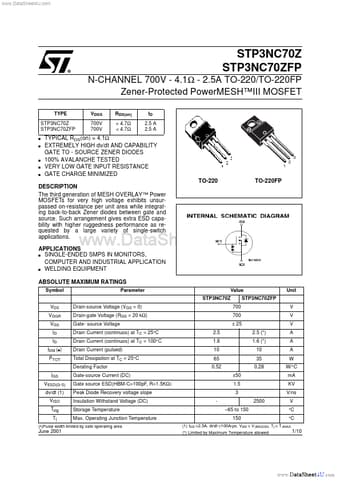

www.DataSheet4U.com N-CHANNEL 700V - 4.1Ω - 2.5A TO-220/TO-220FP Zener-Protected PowerMESH™III MOSFET TYPE STP3NC70Z STP3NC70ZFP s s STP3NC70Z STP3N.
The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-to-b.

📥 Download Datasheet

STP3NC70ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP3NC70ZFP, STP3NC70Z. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STP3NC70ZFP, STP3NC70Z
Manufacturer: STMicroelectronics ↗
File Size: 271.43 KB
Datasheet: STP3NC70Z_STMicroelectronics.pdf
Description: N-CHANNEL MOSFET
Note: This datasheet PDF includes multiple part numbers: STP3NC70ZFP, STP3NC70Z.
Please refer to the document for exact specifications by model.

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to souce. In this respect the 25V Zener vo

Applications

* APPLICATIONS s SINGLE-ENDED SMPS IN MONITORS, COMPUTER AND INDUSTRIAL APPLICATION s WELDING EQUIPMENT ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q ) PTOT IGS VESD(G-S) dv/dt (1) VISO Tstg Tj June 2001 Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- sourc
