STP3NC90ZFP, STP3NC90Z N-CHANNEL MOSFET

ST Microelectronics

Description

www.DataSheet4U.com N-CHANNEL 900V - 3.2Ω - 3.5A TO-220/TO-220FP/I2PAK Zener-Protected PowerMESH™III MOSFET TYPE STP3NC90Z/FP STB3NC90Z-1 s s STP3NC.
The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-toba.

📥 Download Datasheet

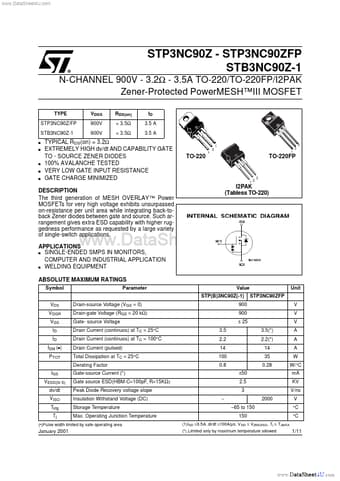

STP3NC90ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP3NC90ZFP, STP3NC90Z. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STP3NC90ZFP, STP3NC90Z
Manufacturer: STMicroelectronics ↗
File Size: 281.30 KB
Datasheet: STP3NC90Z_STMicroelectronics.pdf
Description: N-CHANNEL MOSFET
Note: This datasheet PDF includes multiple part numbers: STP3NC90ZFP, STP3NC90Z.
Please refer to the document for exact specifications by model.

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to souce. In this respect the 25V Zener vo

Applications

* APPLICATIONS s SINGLE-ENDED SMPS IN MONITORS, COMPUTER AND INDUSTRIAL APPLICATION s WELDING EQUIPMENT ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q ) PTOT IGS VESD(G-S) dv/dt VISO Tstg Tj January 2001 Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source
