STP62NS04Z Datasheet, Mosfet, ST Microelectronics

STP62NS04Z Features

  • Mosfet Type STP62NS04Z VDSS RDS(on) max ID Clamped < 0.015 Ω 62 A
  • 100% avalanche tested
  • Low capacitance and gate charge
  • 175 °C maximum junction temperature A

PDF File Details

Part number:

STP62NS04Z

Manufacturer:

STMicroelectronics ↗

File Size:

301.36kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. Fully clamped MOSFET is produced by using ST's most advanced MESH OVERLAY™ process based on strip layout. The inherent benefits of th

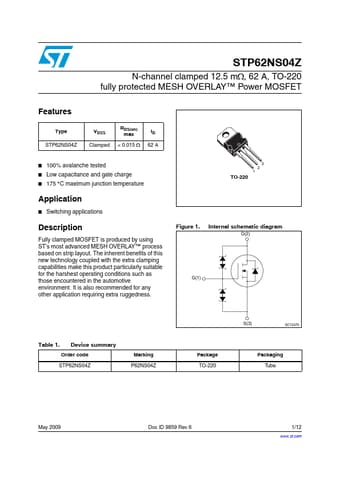

Datasheet Preview: STP62NS04Z 📥 Download PDF (301.36kb)
Page 2 of STP62NS04Z Page 3 of STP62NS04Z

STP62NS04Z Application

  • Applications Description Fully clamped MOSFET is produced by using ST's most advanced MESH OVERLAY™ process based on strip layout. The inherent bene
