Datasheet Specifications
- Part number
- STP60N06-14
- Manufacturer
- STMicroelectronics ↗
- File Size
- 77.67 KB
- Datasheet
- STP60N06-14_STMicroelectronics.pdf
- Description
- N-CHANNEL Power MOSFET
Description

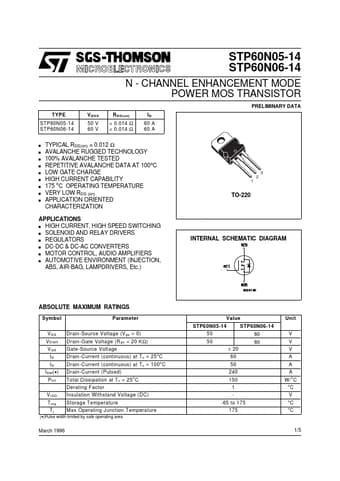

STP60N05-14 STP60N06-14 N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR PRELIMINARY DATA TYPE STP60N05-14 STP60N06-14 V DSS 50 V 60 V R DS(on) < 0.0.
Applications
* HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc. ) s INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS VDGR V GS ID ID I DM (STP60N06-14 Distributors
