Part number: STP60N3LH5
Manufacturer: STMicroelectronics (https://www.st.com/)
File Size: 347.06KB
Download: 📄 Datasheet
Description: N-channel Power MOSFET

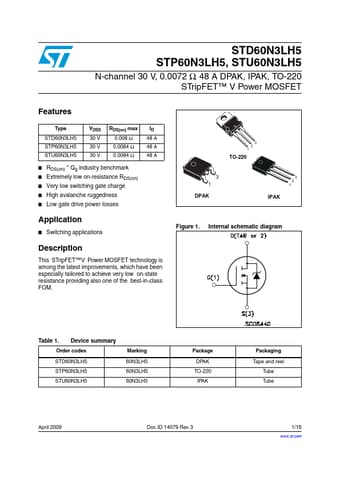

Type STD60N3LH5 STP60N3LH5 STU60N3LH5
VDSS 30 V 30 V 30 V
RDS(on) max 0.008 Ω 0.0084 Ω 0.0084 Ω
ID 48 A 48 A 48 A
* RDS(on) * Qg industry benchmark
* Extreme.
Description
This STripFET™V Power MOSFET technology is among the latest improvements, which have been especially tailor.
This STripFET™V Power MOSFET technology is among the latest improvements, which have been especially tailored to achieve very low on-state resistance providing also one of the best-in-class FOM.
3 2 1
TO-220
3 1
DPAK
3 2 1
IPAK
Figure 1. Internal.
